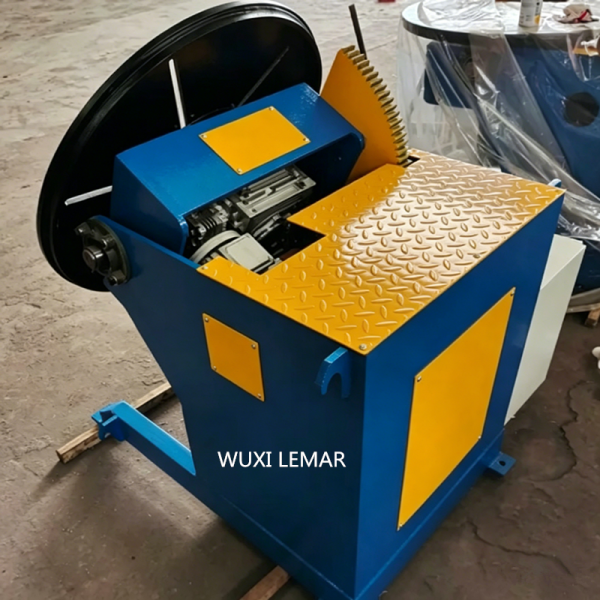

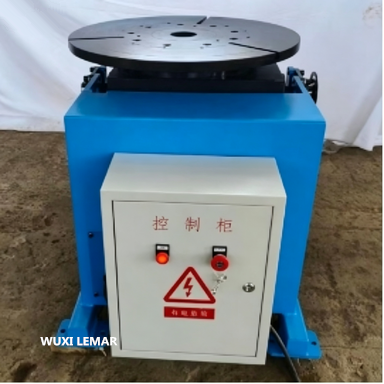

600kg Automatic Welding Positioner | Electric Tilting Rotary Turning Table for Pipe, Flange & Pressure Vessel Circumferential Welding
Core Product Advantages
Stable Heavy-load Performance: Reinforced steel frame with stress relief treatment. Zero shake and deformation under 600kg full load, ensuring stable rotation for eccentric workpieces without welding offset.
Precise Dual-motor Speed Control: Independent drive for rotation and tilting with stepless frequency speed regulation. Shock-free start and stop, enabling uniform weld seams for continuous automatic welding.
Flexible Multi-angle Positioning: 0°-90° electric arbitrary locking converts overhead and vertical welding to flat welding. Reduce labor intensity and rework rate for stable welding quality.
High Compatibility & Expandability: Standard T-slot table supports various fixtures. Reserved PLC interface connects to robot welding systems. Simple floor mounting without complex construction.
Durable & Maintenance-free: Built-in brake locks workpieces in power failure. Sealed bearings resist spatter and dust. Only regular lubrication needed for long-term stable operation.
Frequently Asked Questions
Q1: What workpieces is this 600kg welding positioner suitable for?
A1: It fits flanges, pipes, elbows, small pressure vessels, cylinders and steel structural parts, ideal for circumferential and longitudinal seam welding.
Q2: Can the tilting angle be fixed at any position?
A2: Yes. The worktable tilts electrically from 0° to 90° and can be locked arbitrarily to get optimal welding positions.
Q3: Does it support connection with welding robots?

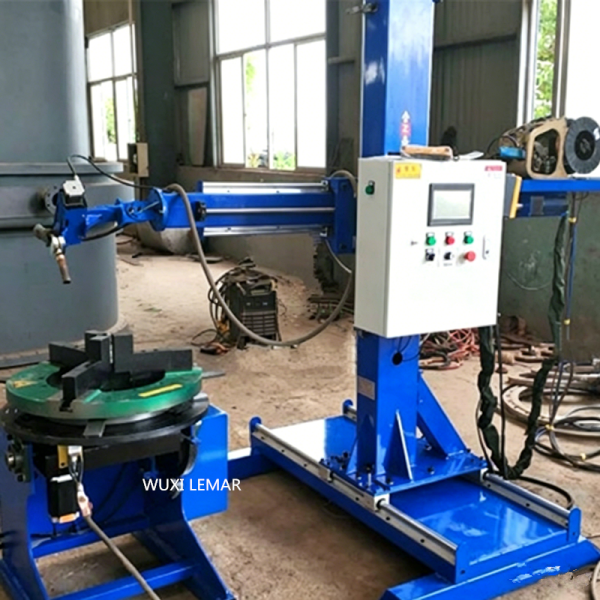

A3: A reserved PLC communication interface is equipped, which can be seamlessly linked to robotic welding stations for automated production lines.
Q4: Is customized modification acceptable?
A4: Custom options include table diameter, special tilting range and explosion-proof structure, tailored to on-site working conditions.
Q5: What is the warranty policy?
A5: 12-month full machine warranty; key components like motors and reducers enjoy lifelong maintenance support.
Q6: Can you provide overseas export packaging?
A6: Custom export packaging is available for sea transportation, avoiding damage during long-distance delivery.
